video thumbnail Conventional X-ray System youtube full image Conventional X-ray System detail image1 Conventional X-ray System detail image2 Conventional X-ray System detail image3 Conventional X-ray System
EXS-SERIES

Conventional X-ray System

  • Payment
    L/C(usance) , OT , T/T
  • MOQ
    1 Set
  • Supply Ability
    1,000 Set per Month
  • Supply Details
    Customization

    Request details on inquiry

  • Country of sale
    Asia, Americas, Europe, Middle East, Africa
  • Catalogue Etc attached Video Clip
  • PRICE

    • FOB

      Depend on quantity

    • CFR

      Depend on quantity

    • CIF

      Depend on quantity

ITEM SPECIFICS

  • Brand
    EXS-SERIES
    Model EPX-F1600, F2400, F2800, F3200, F4000, EXS-32R, EX
  • origin
    Republic of Korea
  • Size(Capacity)
    2620X960X1000(mm), 2620X960X1240(mm)
  • Package Includes
    Main system, Table, Stand
  • Color
    IVORY
  • Weight
    Net-Weight : 580KG Gross-Weight : 825KG
  • Features

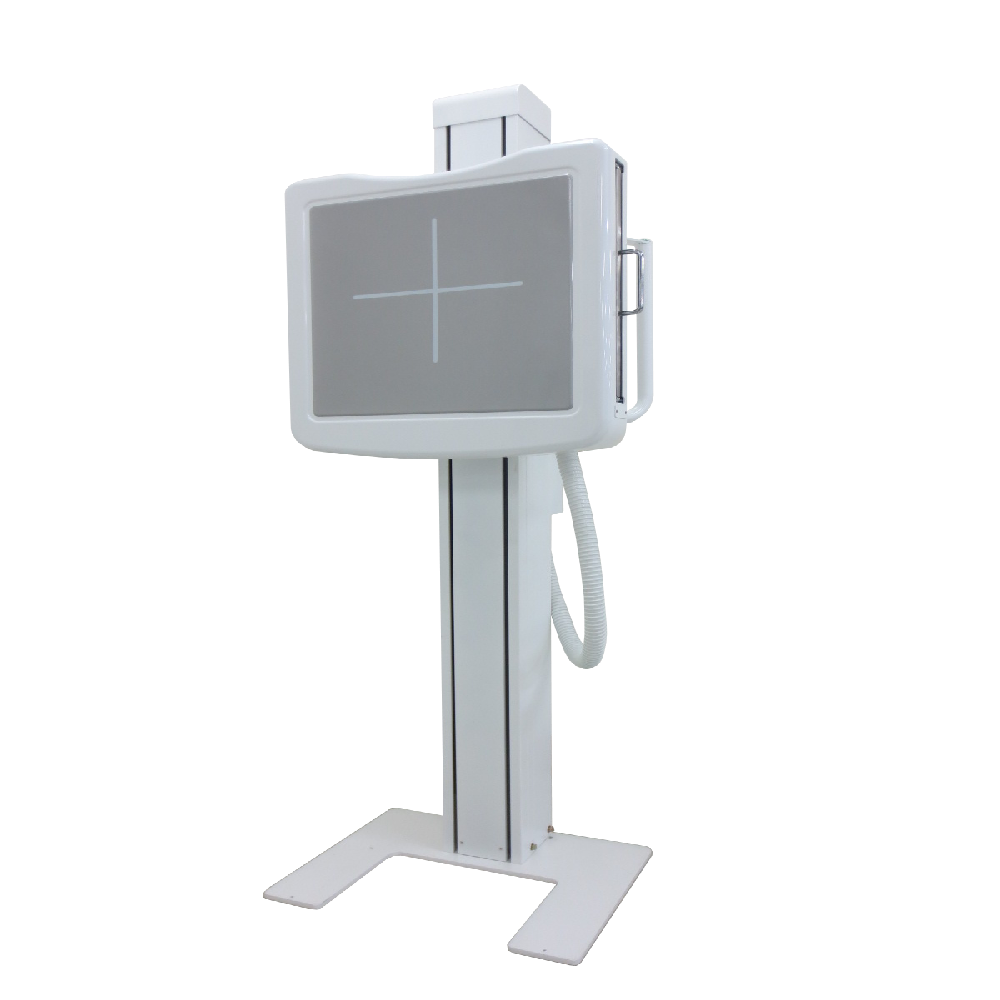

    Bucky suitable to Flat Panel Detector


PRODUCT DESCRIPTION

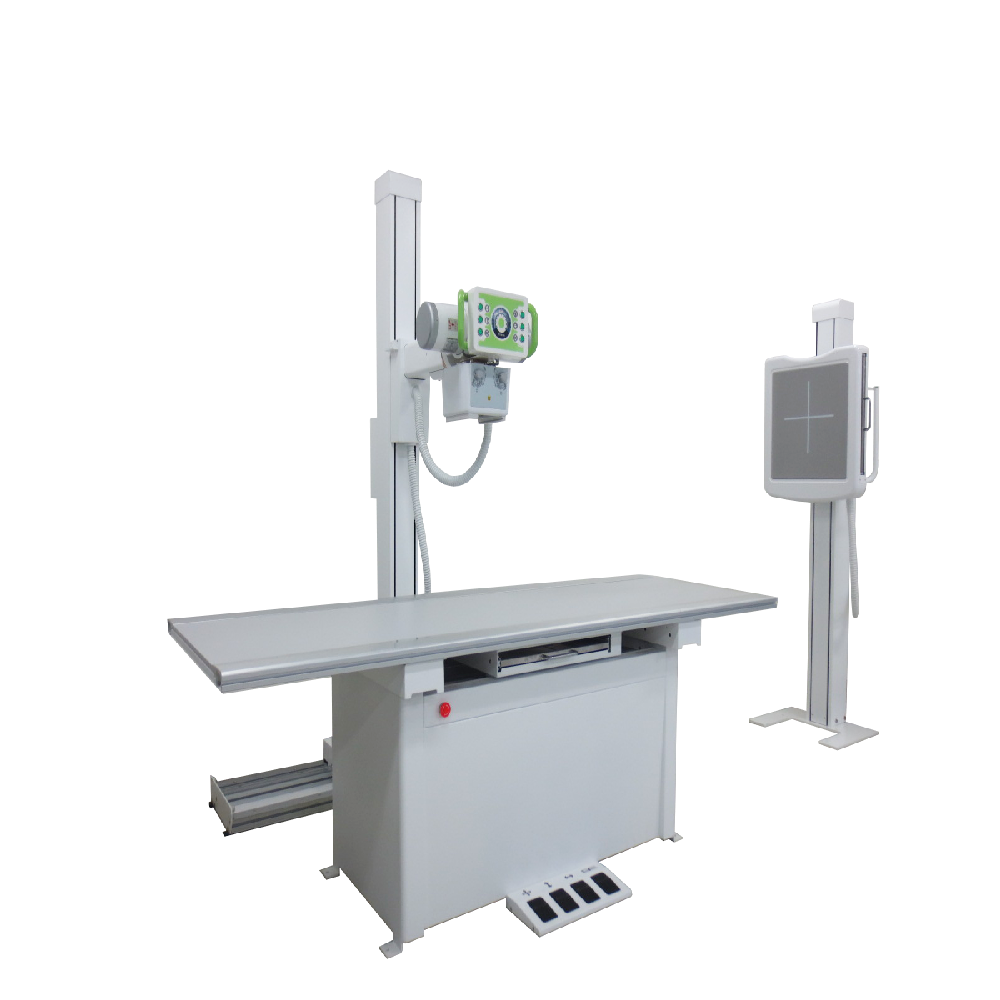

Innovation Digital Radiography System
The newly designed EXS-SERIES diagnostic X-ray system provides an analogue radiographic room that perfectly fits your workflow and budget,
which can be easily upgraded to DR system with the help of DR interface and PC interface in the generator as well as Bucky suitable to Flat Panel Detector.

EXS-SERIES X-ray system is designed for operator and patient comfort with the moving components specially designed to reduce
electromechanical lock noise Experience the quality, durable and user-friendly operation for all applications with the EXS-SERIES X-ray system.

EXS SERIES DIAGNOSTIC X-RAY SYSTEM
[PRO SPECIFICATION]
System
Model EXS-32R  EXS-40R  EXS-52R  EXS-68R

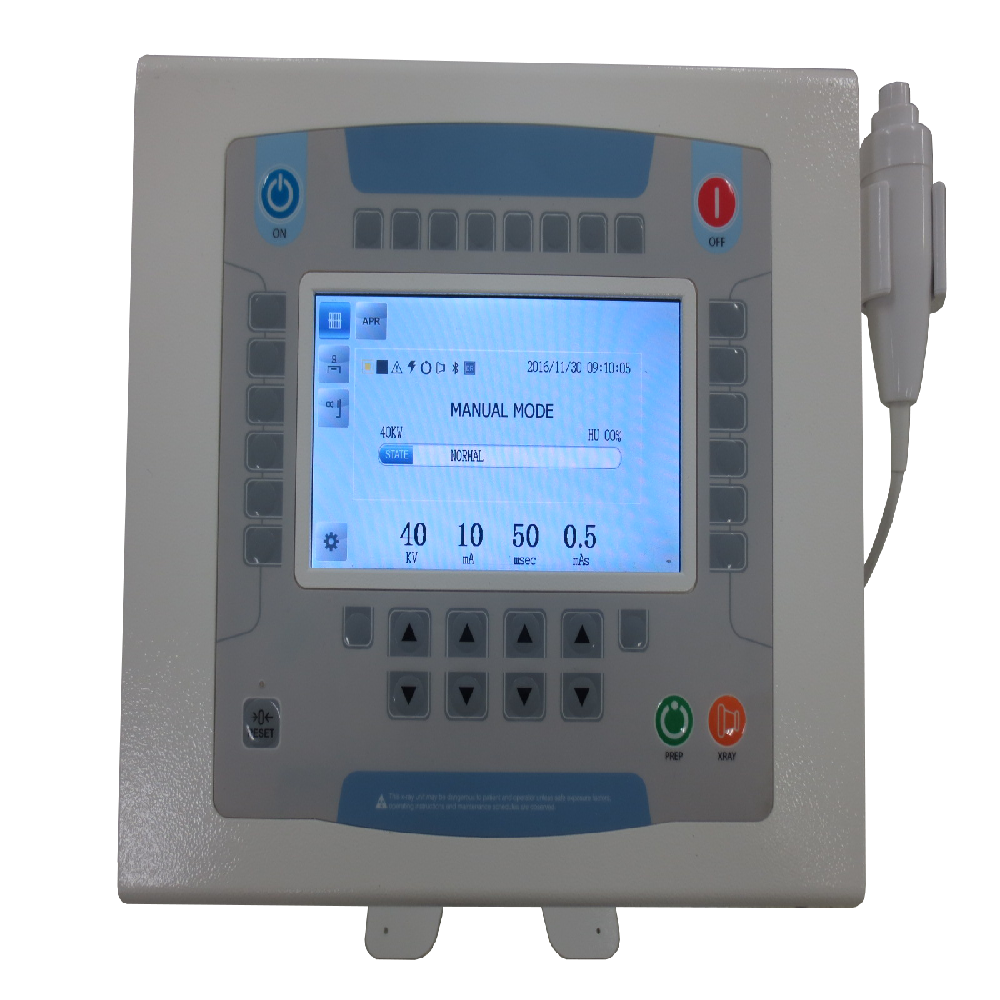

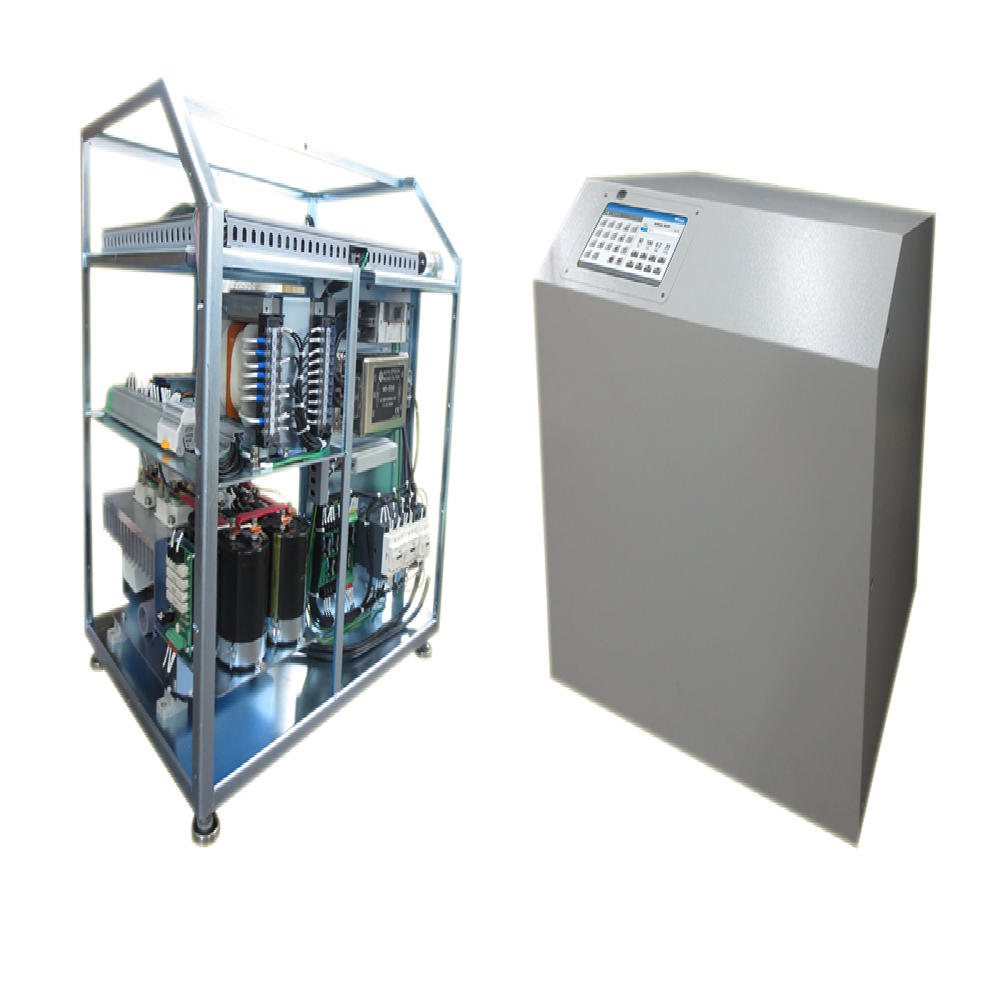

X-ray Generator 　 　 　 　
Model SXG-32R  SXG-40R  SXG-52R SXG-68R
Line Nominal  230V±10% , 1Φ(Single-Phase) , 50/60Hz  400V±10% , 3Φ(Three-Phase) , 50/60Hz
kV Range 40 to 125kV, 1kV step 40 to 150kV, 1kV step
mA Range 10 to 400mA 10 to 500mA  10 to 640mA  10 to 800mA
Timer Range  1ms to 10sec, 36steps
mAs Range  0.1 to 400mAs  0.1 to 500mAs 0.1 to 640mAs  0.1 to 800mAs
Max. Power Output  400mA@80kV
320mA@100kV
250mA@125kV 		 500mA@80kV
400mA@100KV
320mA@125kV 		 640mA@81kV
500mA@104kV
400mA@130kV
320mA@150kV		 800mA@85kV
640mA@106kV
500mA@136kV
400mA@150kV
Rotor Supply Low Speed Starter (LSS) Dual Speed Starter (DSS) , (Option for 52kW)
Reproducibility Coefficient of Variant : kV<0.005 , Time<0.005, mAs<0.01
Accuracy kV<±(3%+1kV), mA<±(5%+1mA), Time<±(1%+1ms), mAs<±(3%+1mAs)
Dimension (DxWxH)  430x620x640mm
Weight 108kg 110kg
X-ray Tube
Model TOSHIBA E7239X  TOSHIBA E7252X Max
Max. Power 125kVp 150kVp (125kVp@LSS)
Max. Heating Unit  140kHU (100kJ) 300kHU (210kJ)
Nominal Focal Spot  1.0@Small , 2.0@Large 0.6@Small , 1.2@Large
Maximum Tube Current  350mA@Small , 600mA@Large  400mA@Small , 1000mA@Large
Max. Voltage to Ground  65kV  78kV
Filtration & Anode Type  0.9mmAL & Rotating Anode
Target  12 degrees (Rhenium-Tungsten faced Molybdenum)
Weight  16kg 18kg
