Load cell(UMI)

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide, Asia, Americas, Europe, Middle East
Catalogue
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

LOAD CELL

Model UMI
origin

Republic of Korea
Size(Capacity)

100gf~2tf

PRODUCT DESCRIPTION

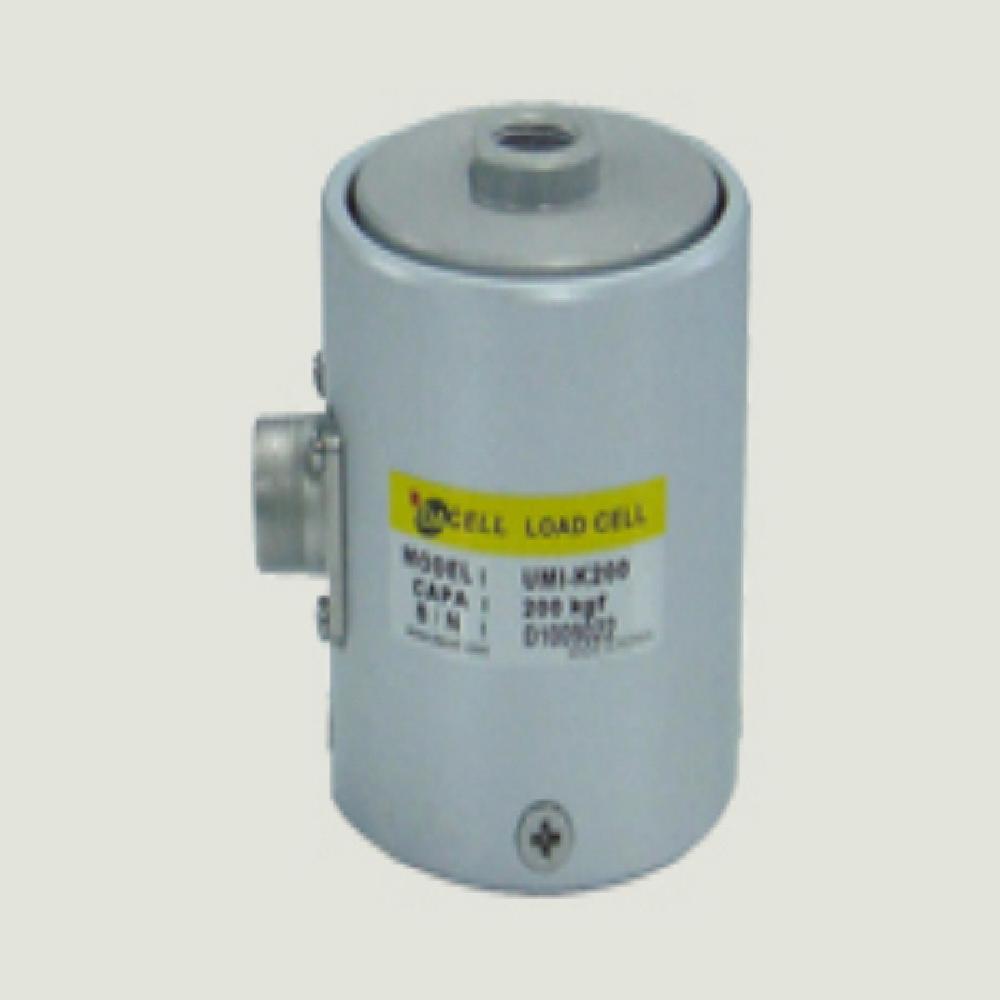

Model UMI
Model UMI loadcells measure.Both tension & compression load force of 2kgf to 2tf.
•High accuracy,high output voltage and tight tolerance provides excellent reliability.
•Applications include performance testers for automotive industry.
Specifications

Specifications	Accuracy
Rated capacity (R.C.)	100gf, 200gf, 500gf, 1kgf, 2kgf, 5kgf, 10kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf
Rated output (R.O.)	2mV/V±1% (100gf~5kgf=1mV/V)
Nonlinearity	0.03% of R.O.
Hysteresis	0.03% of R.O
Repeatability	0.03% of R.O.
Zero balance	±2% of R.O.
Excitation recommended	10V (100gf~5kgf=5V)
Terminal resistance	350Ω ± 1%
Insulation resistance bridge	2000㏁
Temperature range, compensated	-10 ~ 50℃
Temperature range, safe	-20 ~ 80℃
Temperature effect, on rated output	0.1% of LOAD/10℃
Temperature effect, on zero balance	0.05% of R.O./10℃
Excitation recommended	10V
Safe overload	120% R.C
Cable length	Φ5 ±0.5 ,4core, 3m

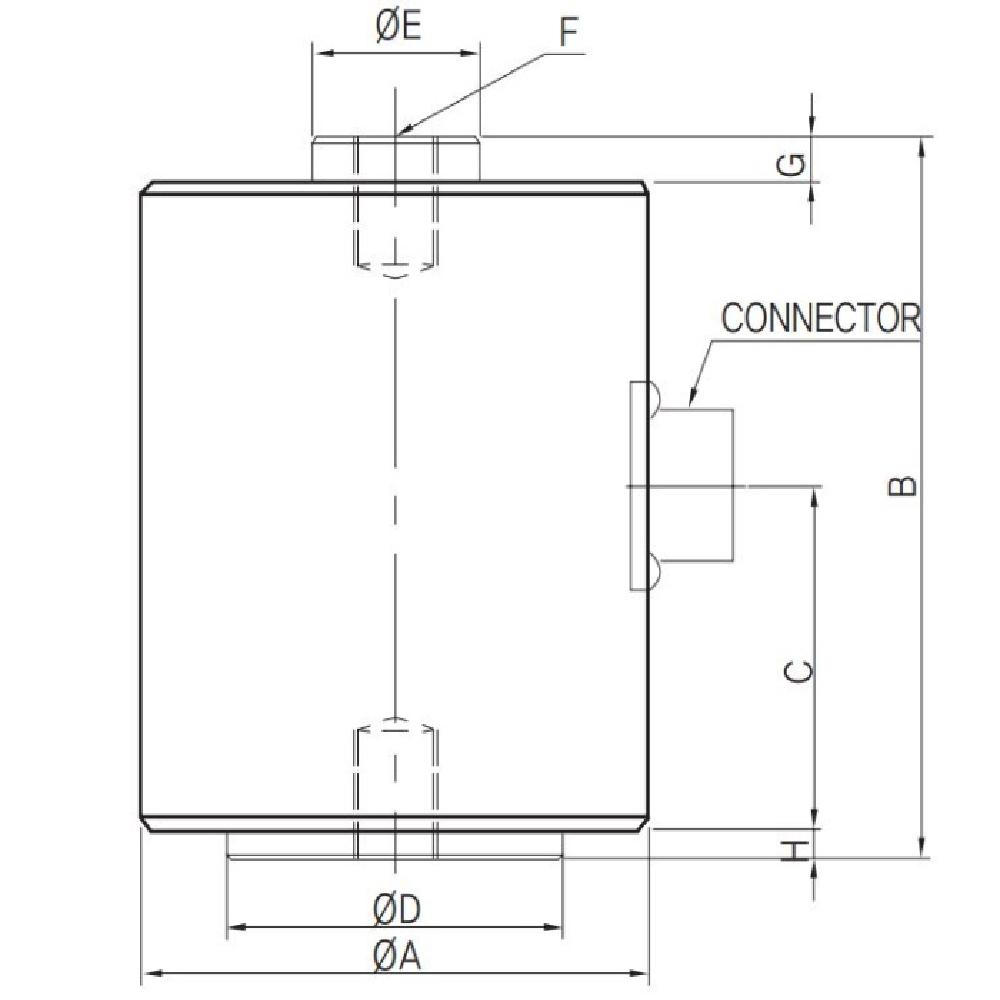

Dimensions

Capacity	ΦA	B	C	ΦD	ΦE	ΦF	G	H	Weight(kg)
100gf (0.980N)	52	45	23	47	10.5	M4×0.7DP8	7	1	0.5
200gf (1.961N)	52	45	23	47	10.5	M4×0.7DP8	7	1
500gf (4.903N)	52	45	23	47	10.5	M4×0.7DP8	7	1
1kgf (9.807N)	52	45	23	47	10.5	M6×1.0DP8	7	1
2kgf (19.61N)	52	45	23	47	12	M6×1.0DP8	7	1
5kgf (49.03N)	52	45	23	47	12	M6×1.0DP8	7	1
10kgf (98.07N)	60	80	37	40	20	M12×1.75DP15	5	3	1
20kgf (196.1N)	60	80	37	40	20	M12×1.75DP15	5	3
50kgf (490.3N)	60	80	37	40	20	M12×1.75DP15	5	3
100kgf (980.7N)	60	80	37	40	20	M12×1.75DP15	5	3
200kgf (1.961KN)	60	80	37	40	20	M12×1.75DP15	5	3
500kgf (4.903KN)	60	80	37	40	20	M12×1.75DP15	5	3
1tf (9.807KN)	60	80	37	40	20	M12×1.75DP15	5	3	2
2tf (19.61KN)	88	110	51	80	36	M18×1.5DP22	5	3	3
