Fiber Optic Attenuator (Fixed Type)
An optical attenuator decreases the strength of an optical signal passing through it to a fiber optic cable or open air. The intensity of the signal is described in decibels over a specific distance the signal travels. It is the strength, or amplitude of the signal that changes and not the overall waveform or frequency, so the optical signal remains undistorted for use in the desired application. Optical attenuators are often used in optical communication systems, in which the attenuation, also called transmission loss, helps with the long-distance transmission of digital signals. The most common optical attenuator types include fixed and continuously variable attenuators.
Attenuators are used to reduce excess optical power from the transmitter that can results in over-saturation of the receiver.
These attenuators are available in SC, LC, ST, FC and MU style with APC, UPC.
The front of the attenuator is a male plug connector style that allows the attenuators to be plugged directly into receiver equipment or adaptors in patch panel.
KOC’s optical attenuators have been recognized as “Korean World-class Products” by the Ministry of Knowledge Economy.
Item
· Fibre Optic Attenuator
Application
· Telecommunication Systems
· Cable Television Networks
· Test Equipment· Data Communications Networks
· Local Area Networks
Features
· Wavelength insensitive
· Mode noise suppression
· Low polarization dependent loss
· High power endurance
· Fixed and variable attenuation
· Low polarization dependent loss
· High power endurance
· Fixed and variable attenuation
Attenuaore specification
· Attenuation Range : 1 to 30dB (1dB increment)
· Operating Wavelength : 1310nm / 1550nm (SM), 850nm (MM)
· Tolerance : Attenuation 1 to 10dB : ±0.5dB
Attenuation 11 to 30dB: ±1.0dB
· Return Loss : UPC type : UPC type : ≥50dB / APC type : ≥60dB
· Polarization Dependent Loss: ≤0.5dB
· Operation Temperature: -40℃ to +75℃
Connector Type

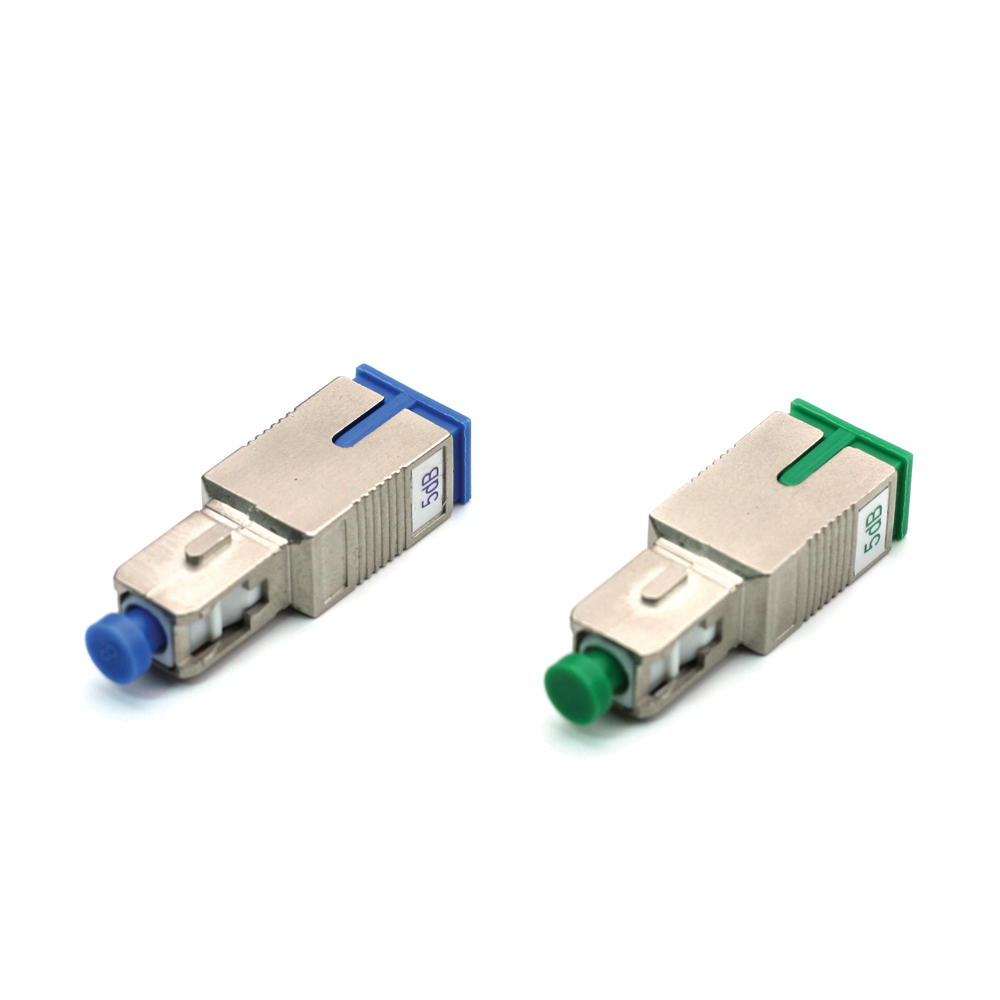

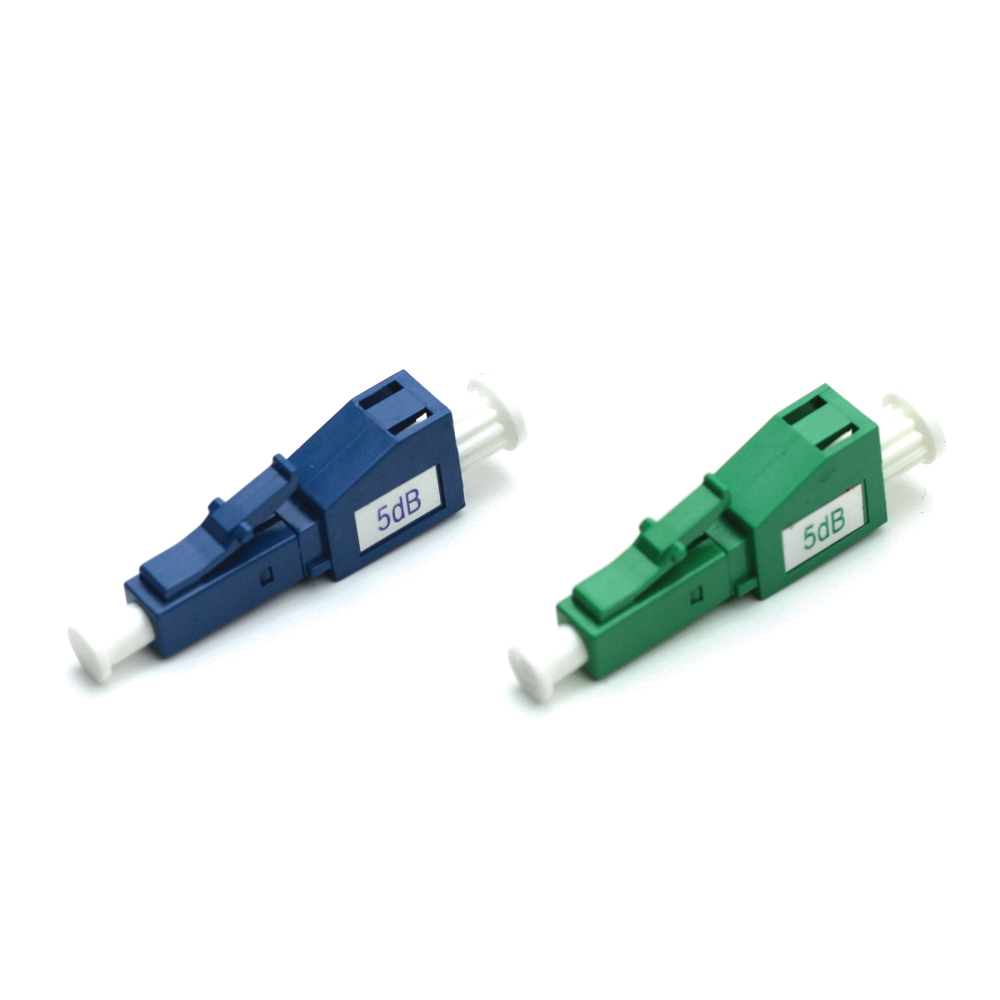

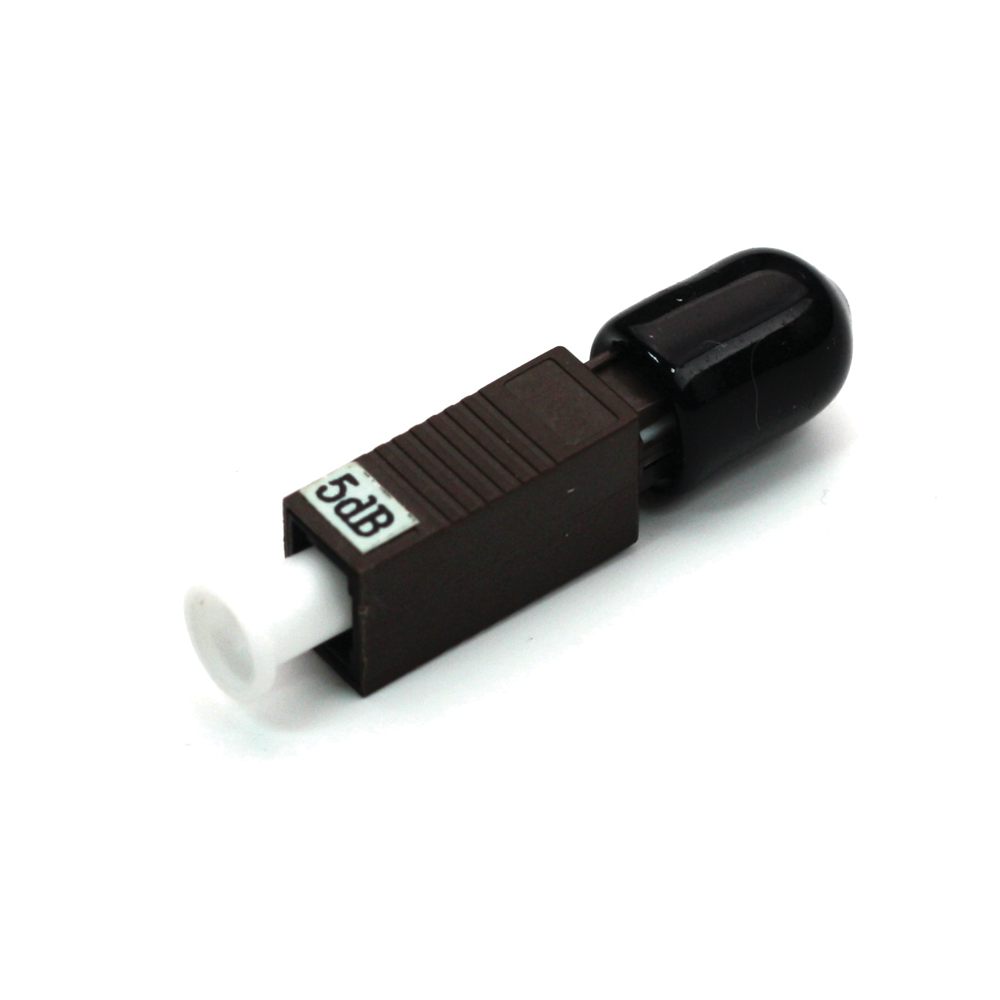

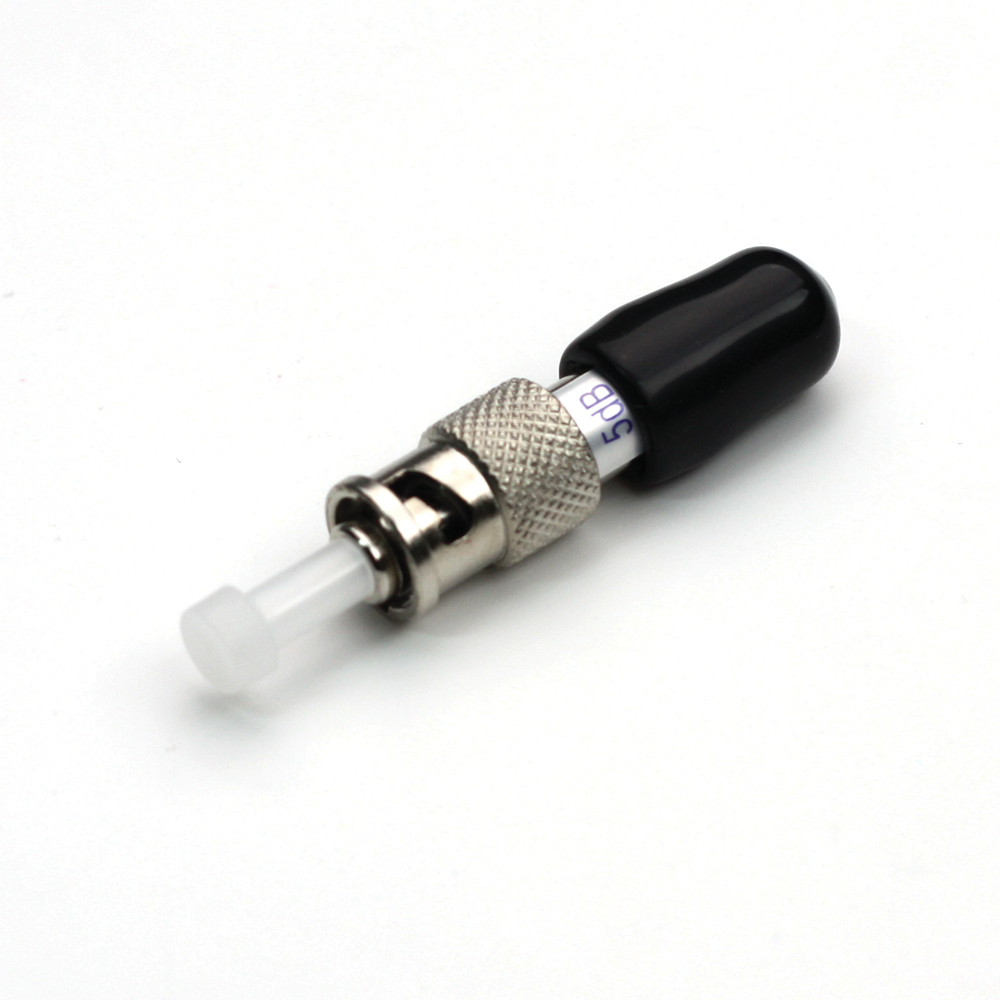

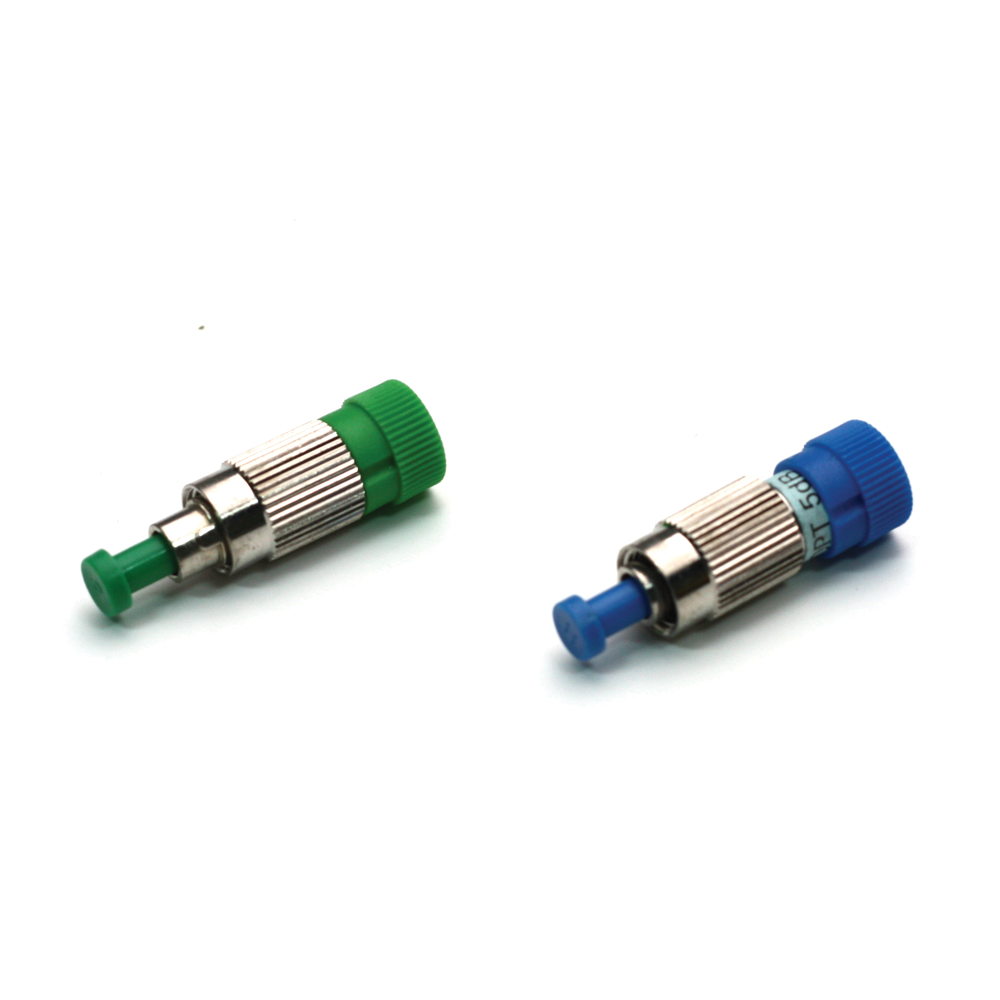

· SC type / LC type / FC type / ST type/ MU type
· Fiber type
① SM : Standard Single Mode
② MM: Multi Mode 50/125 & 62.5/125 um (OM1, OM2, OM3, OM4)
· Ferrule Polishing type
① PC type: Physical Contact type
② APC type: Angled Physical Contact type
Company Overview
KOC, based in South Korea, is a globally recognized manufacturer of fiber optic products and specializes in integrated fiber optic solutions and service. KOC has been supplying high level of quality and cost-effective fiber optic products more than 30 countries around the world and have done our best to understand and meet our customer’s requirements since 1997.
KOC possesses cutting edge manufacturing facilities, world-class technologies and a strong R&D capability. Our product range includes an extensive variety of optical connectors, Optical Patch Cords, Optical Adaptors, Fixed and Variable Optical Attenuators, MPO products, PLC Splitters, FDF, Optical Couplers / WDMs and so on. All the products are manufactured in ISO9001, ISO14001 and TL9000 certified facilities and comply with applicable international standards.
KOC’s Optical Attenuators and Field Assembly Optical Connectors, MPO Products have been recognized as “Korean World-Class Product” by the Ministry of Commerce, Industry and Energy of Korea. In addition, We have been supplying over 4,000,000pcs of Fiber Optic products to KT(Korea Telecom), and SK broadband as their first vendor.
KOC has launched Optical MEMS Scanner certified by the Ministry Of Trade, Industry & Energy of Korean Government in 2014, which was hybrid technology of MEMS and Optics.
KOC’s Optical MEMS Scanner can be applied to various kinds of industry as the role of bio/industrial imaging or other scanning system for information technology.
Furthermore, KOC has stepped in the field of green energy industry through the intensive researching and successive development. Due to endless hard work,
KOC has not only become the leading supplier of Energy Storage System and Solution to the worldwide, but also contributes to the environmental protection from pollution caused by depletion of fossil energy as a social enterprise. KOC will do its best to be a pioneer of the future technology and to remain continuously dedicated to the improvement of all its products and services.
