FTTH Drop Cable Jumper

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Unbranded
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

[Product Description]

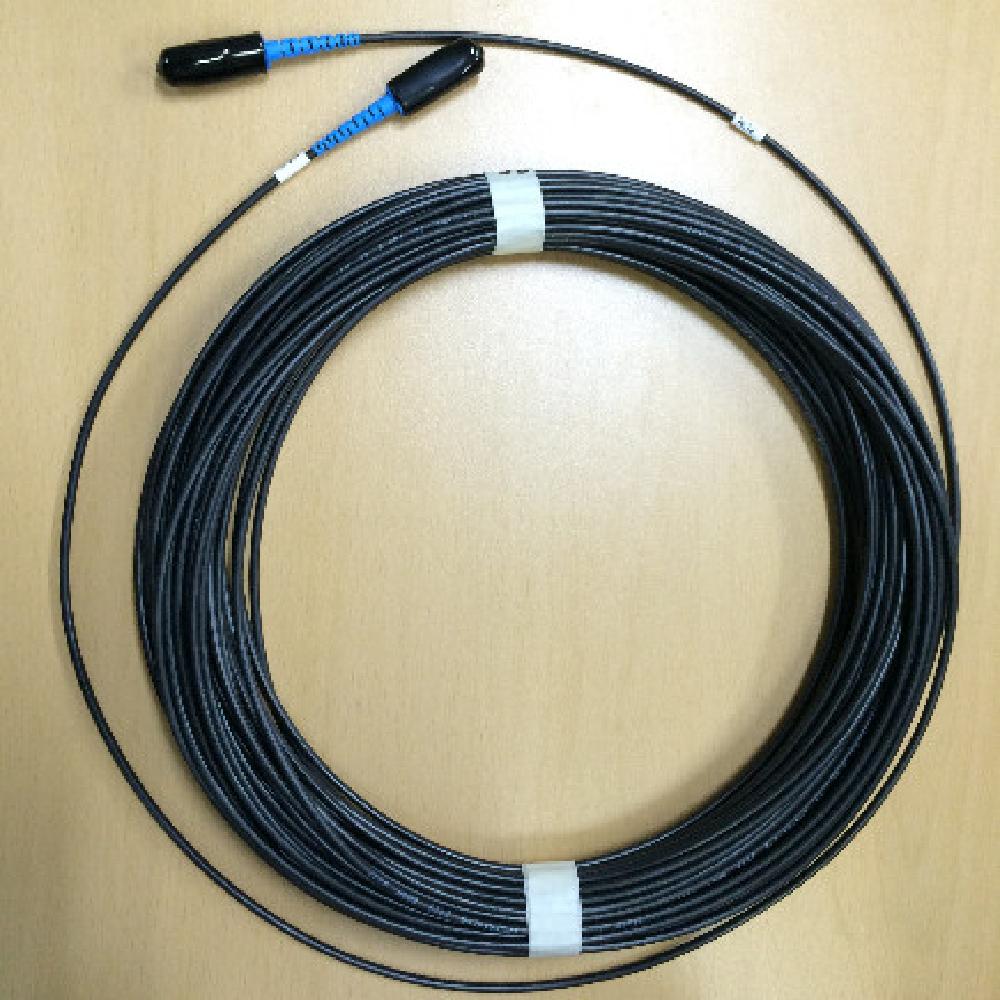

KOC's FTTH drop cable jumper is connecting to customer premises. It have stable curvature property and high tensile strength considering laying strength. Also it is superior mechanical and environmental characteristic for external pressure and impact, climate change.

[Product Features]

- Moved closer to end-user
- Superior fiber optic characteristic
- Appropriate tensile strength in the field
- Easy cable pulling as lighter weight and smaller size than loose tube type
- Excellent flexibility and bending characteristic

[Product Specification]

Connector Specificaton	TIA/EIA-604-3[SC], TIA/EIA-604-10[LC], TIA/EIA-604-2[ST], TIA/EIA-604-4[ST]
Connector type	SC / LC / ST / FC
Ferrule type	PC / APC
Jumper type	Both ends / One side end
Jumper length	1mtr ~ 100mtr
Insertion loss	Typ.0.3dB / Max.0.5dB
Return loss	PC type ≥50dB / APC type ≥60dB
Durability	<0.2dB / 500times reconnection
Operating temperature	<0.2dB / -40°C ~ +75°C

Cable Specification		IEC794-1, EIA455
Cable type		Round(O) type		8type	Squre(ㅁ) type
Fiber type		1core	2core/4core	1~4core	1~4core
		Singlemode (9/125) / Multimode OM1,OM2,OM3, OM4 G657A2 / G657B3
Outer size		3.0mm	3.5mm	3.5mmX6.5mm	2.2mmX1.8mm
Outer color		Black
Buffer color		Blue /Gray
Weight		8kg/km	11kg/km	20kg/km	7~10kg/km
Tensile strength		50kgf
Bending Radius	During operation	20times of cable outer size
	During installation	10times of cable outer size
Operating temperature		-40°C ~ +70°C

[Cable Structure]
① Line of support
② Optical fiber
③ Tight buffer (∅0.6mm or ∅0.9mm)
④ Aramid yarn (strength)
⑤ Outer Jacket (PU or LSZH)
