Field Assembly Optical Connector - SC type

Product Overview

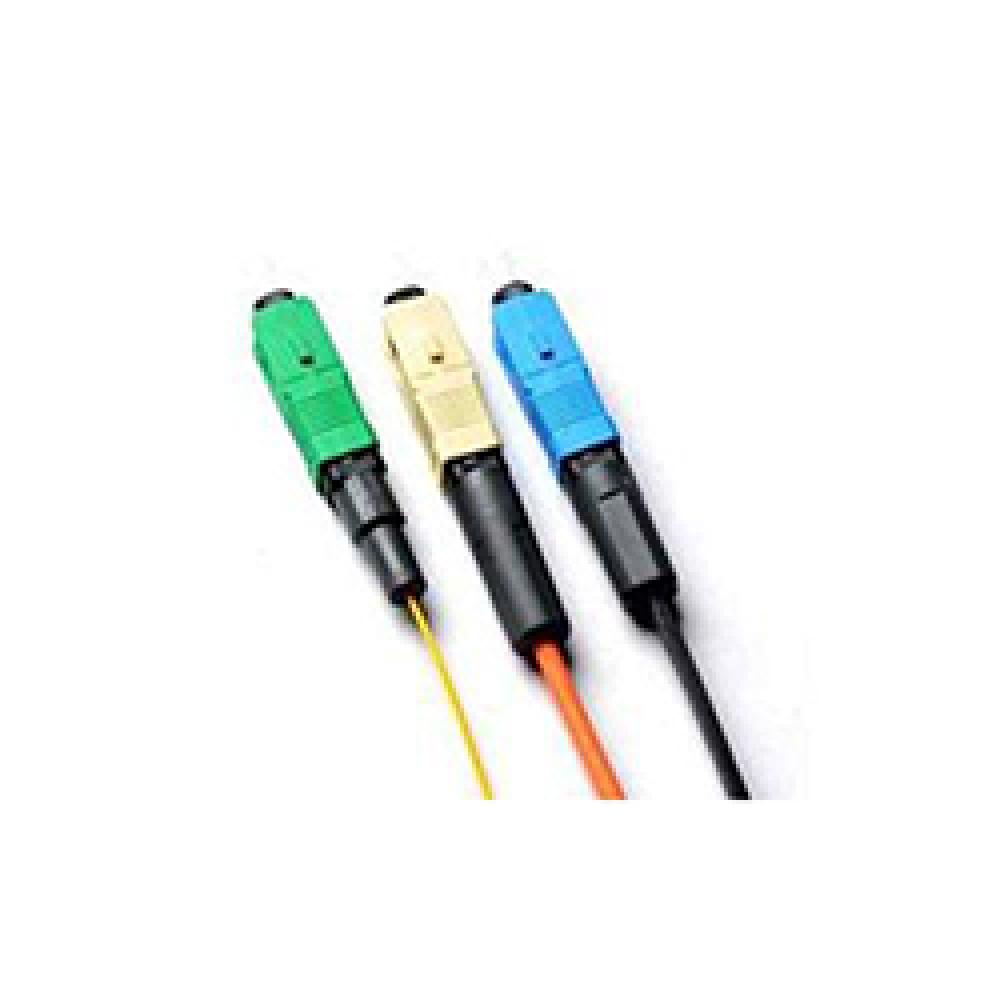

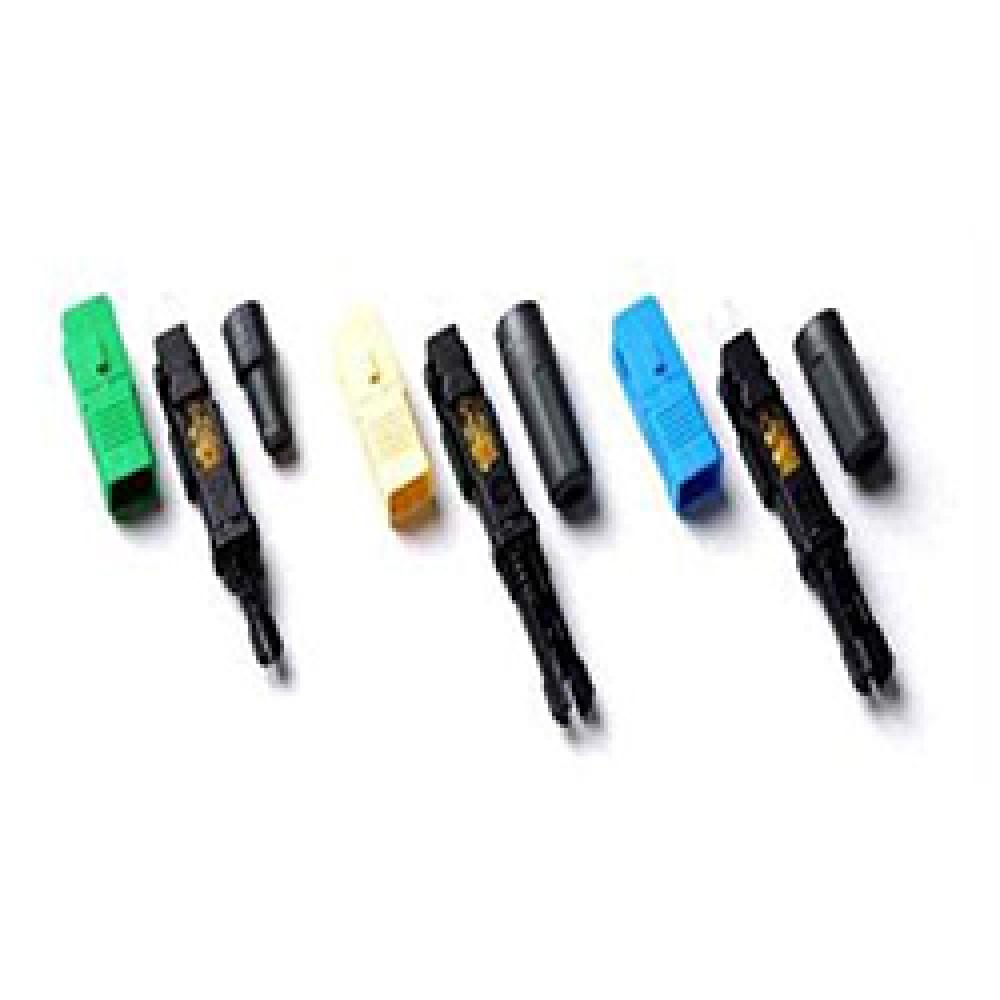

Korea Optron FAOC SC type is the most widely used to fiber optic connector in FTTH without polishing, That enables fast and on-site installation of 250um, 900um, 2.0um and 3.0um connectors even when the user has no access to power. The three pieces of the preassembled connector can be installed within a minute using simple tools and recycled serveral times. It can accommodates a reliabe and durable to optical network, especially suitable for advanced fiber optic systems requiring exceptional stability and low loss.

1. Item

   - Field Installable Connector

   - Fas Installabe Optical Connector

   - Pre-polished Optical Connector

   - Quick Assembly Connector

2. Application

   - Fiber Optic Telecommunication

   - Fiber Distributions Frame

   - FTTH Outlets

   - Optical Cable Inserconnection

   - Cable Television

3. Features

   - Quick and easy fiber termanation

   - Available to re-use

   - High success rate of connection

   - Superior Optical Characteristic value

   - simple assembly process

   - No failure after openning

4. Assembling Tools

   - Cleaver

   - Scisors

   - Gauze with Alcohol

   - Stripper

5. Connector Type

   - V-groove type

   - Fiber type

      ① SM : Standard Single Mode

      ② MM: Multi Mode 50/125 & 62.5/125 um (OM1, OM2, OM3, OM4)

   - Ferrule Polishing type

      ① PC type: Physical Contact type

      ② APC type: Angled Physical Contact type

   - Connector type for using cable type

      ① 3.0mm (Round) type : 2pcs parts

      ② 2.0mm (Round) type:  [2pcs parts

      ③ 2.0mm X 3.0mm (Flat) type: 2pcs parts

      ④ 1.6mm X 2.0 mm (Flat) type: 2pcs parts

      ⑤ 250um&900um (Round) type [ 3 pcs parts] -> with assembling jig tool & 900um fit tube
