AUTROL

ATT2100 Smart Temperature Transmitter

  • Payment
    T/T
  • MOQ
    1 ea
  • Supply Ability
    9,999,999 ea per One-Time
  • Supply Details
    Customization Sample Order

    Negotiable

  • Country of sale
    Americas, Middle East, Europe, Asia, World Wide
  • PRICE
    • EXW

      Depend on quantity

ITEM SPECIFICS

  • Brand
    AUTROL
    Model ATT2100
  • origin
    Republic of Korea
  • Size(Capacity)
    86 x 115 mm (Excluding sensor, product head only)
  • Function
    Transmitter
  • Material
    Aluminum Alloy Housing (or 316 SST Housing) + 316 SST Body Flange
  • Color
    Blue + Gray Epoxy-Polyester Painted
  • Weight
    1.2 kg (Standard Model, Aprox.), 2.7 kg (316 SST Housing, Aprox.)


PRODUCT DESCRIPTION

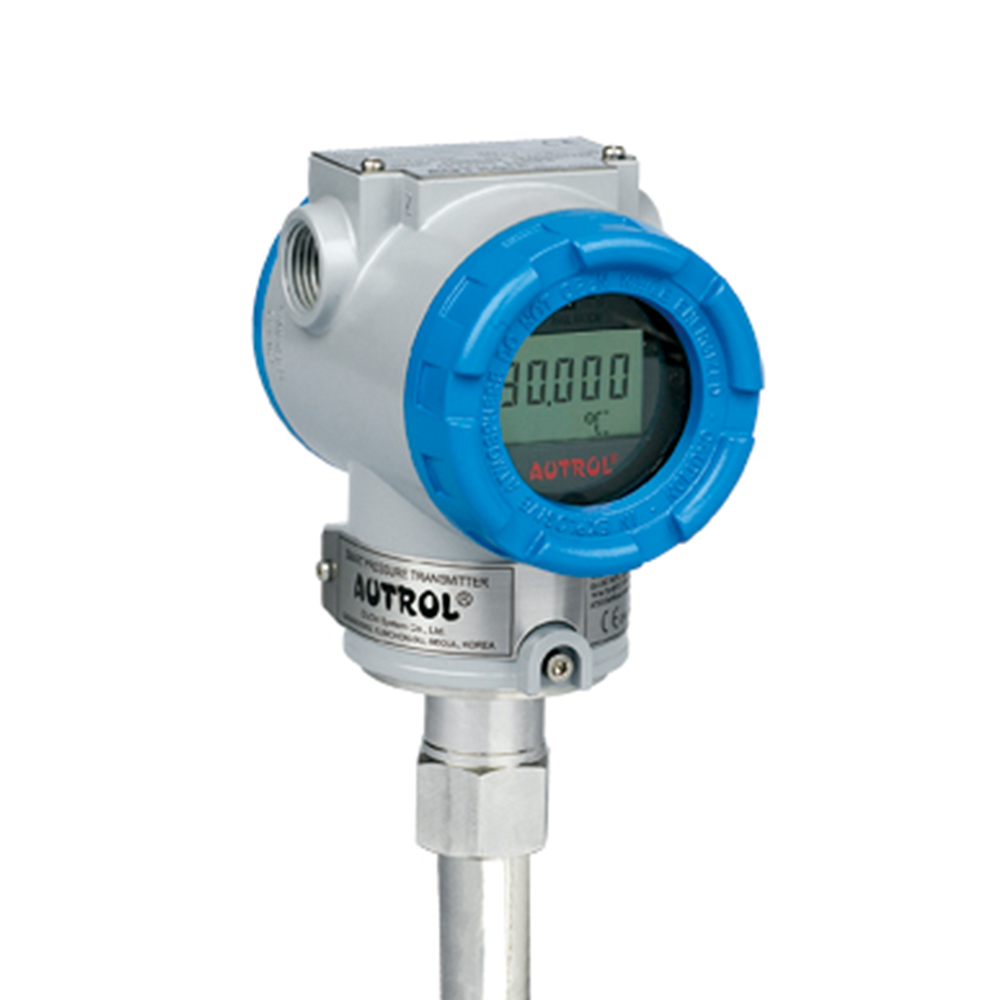

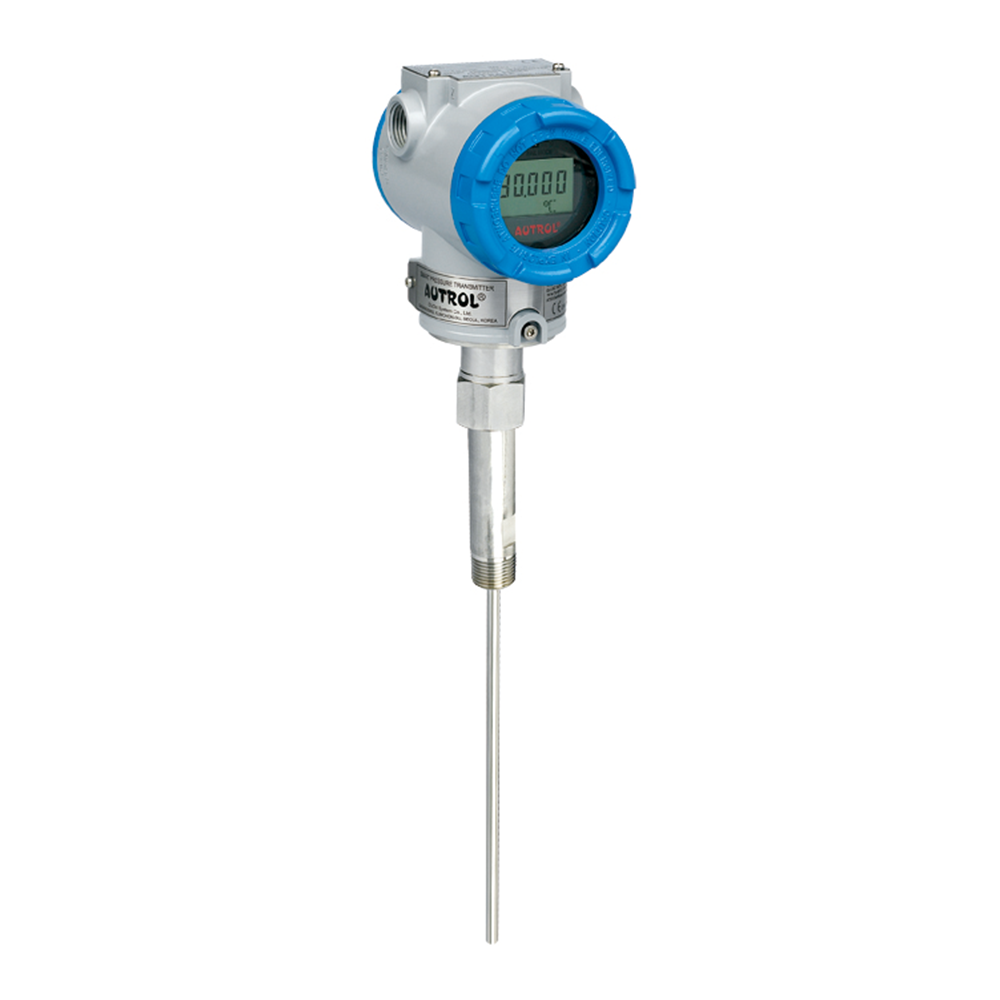

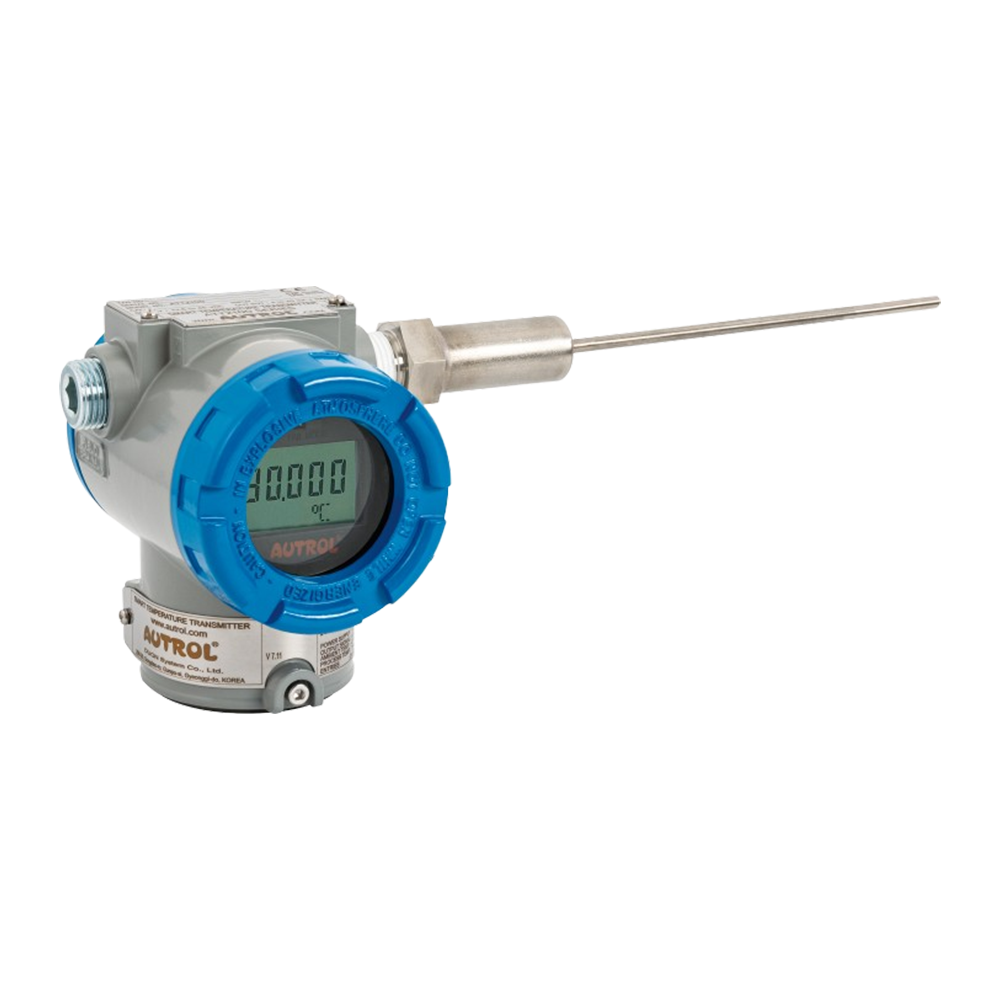

ATT2100 Smart Temperature Transmitter
Description of Product
The AURTOL Smart Temperature Transmitter is a microprocessor-based high performance transmitter, which has flexible Dual and Single sensor input and output, automatic compensation of ambient temperature and process parameters, configuration of various parameters, communication with HART protocol.
All Data of Sensor (Tag No., type, range etc.) is to be input, modified and stored in EEPROM.
The HART 7 protocol applies on ATT2X00 series for more diverse scalability.
In addition, the "Fast Back-up" function for Dual sensor is introduced. When a problem occurs in a line, another line switched automatically and quickly in order to secure safety and reliability.
Function
 · Dual/Single Sensor
 · Flexible Sensor input : RTD, T/C, mV, Ohm
 · Smart Backup function
 · Various output : 4~20mA(Analog), Digital Signals
 · Automatic Compensation by Linearization table in which user can modify the various necessary values
 · Automatic Compensation of Ambient Temperature
 · Setting Various Parameters : Zero/Span, Unit, Fail-mode, Trim, etc.
 · Self Diagnostic Function : Sensor, A/D Converter, Memory, Power, etc.
 · Digital Communication with HART protocol
 · Flameproof Approval : KCs, ATEX, FM, EAC(Russia, CC TR CU) [ATT2100]
 · Marine Certificate : ABS, LR, DNV, BV, KR (ATT2100)
 · SIL2 (IEC 61508)
Company Overview
Autrol Smart Transmitter products, manufactured by Duon System, harmonize with all instruments at the field. We have been finding a way to have the best measurement solution in world instruments market.

Duon System was established on May in 1989. Since then, we had successfully performed for DSC(Distribution Control System) with more than 70 projects. However, we have focused on developing Smart type, which is core part of field instruments.: Differential, Gauge, Absolute, Temperature and GWR(Guided Wave Radar) transmitters with our own technology as named Autrol.

Autrol Smart Transmitter has performed all sorts of applications at more than 45 countries successfully with high class of international quality systems in field along with universal protocol, international certificates and regulations. The results have satisfied End-users and we are very proud of both Duon System and Korea instrument market because no one had a result like Duon System for Autrol Smart Transmitter in Korea.

Duon system now, has been supplying to BMWS, BWTS, SCR, Deisel, Boiler, BOG, LNG, Fuel Measuring and etc.
