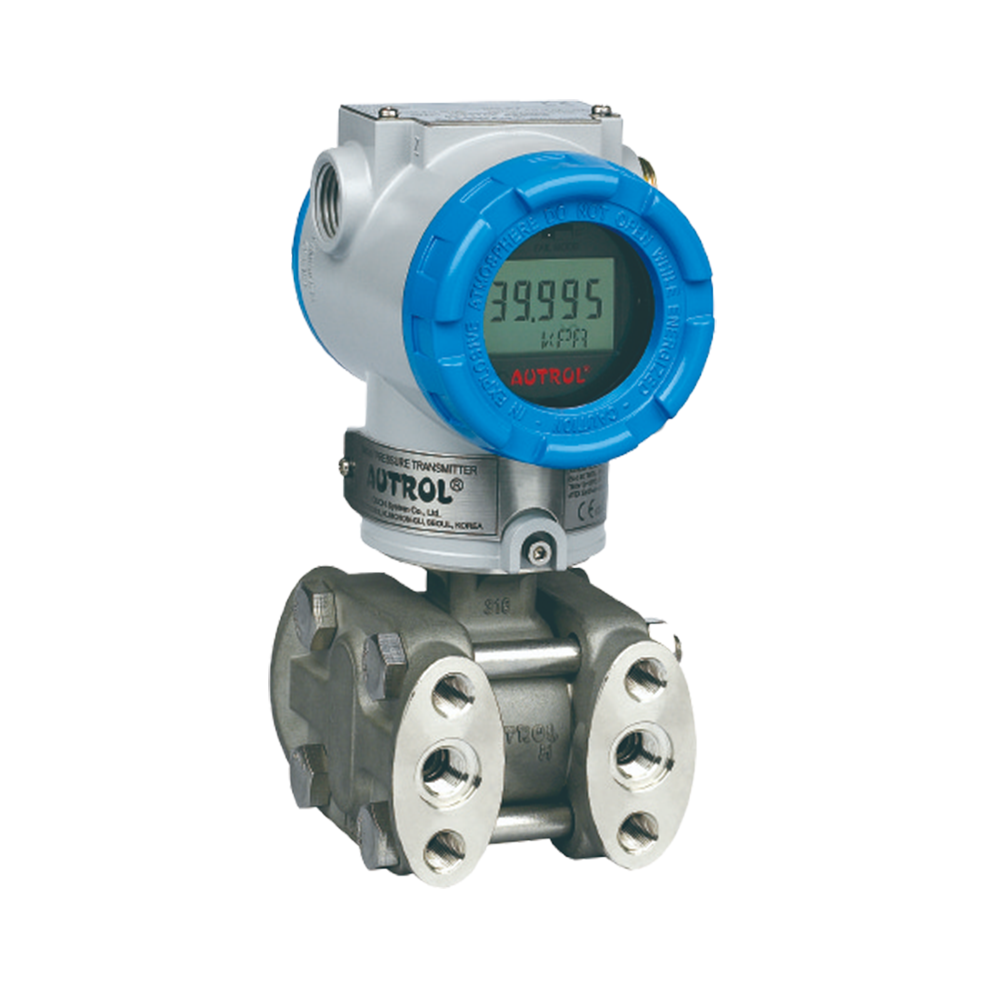

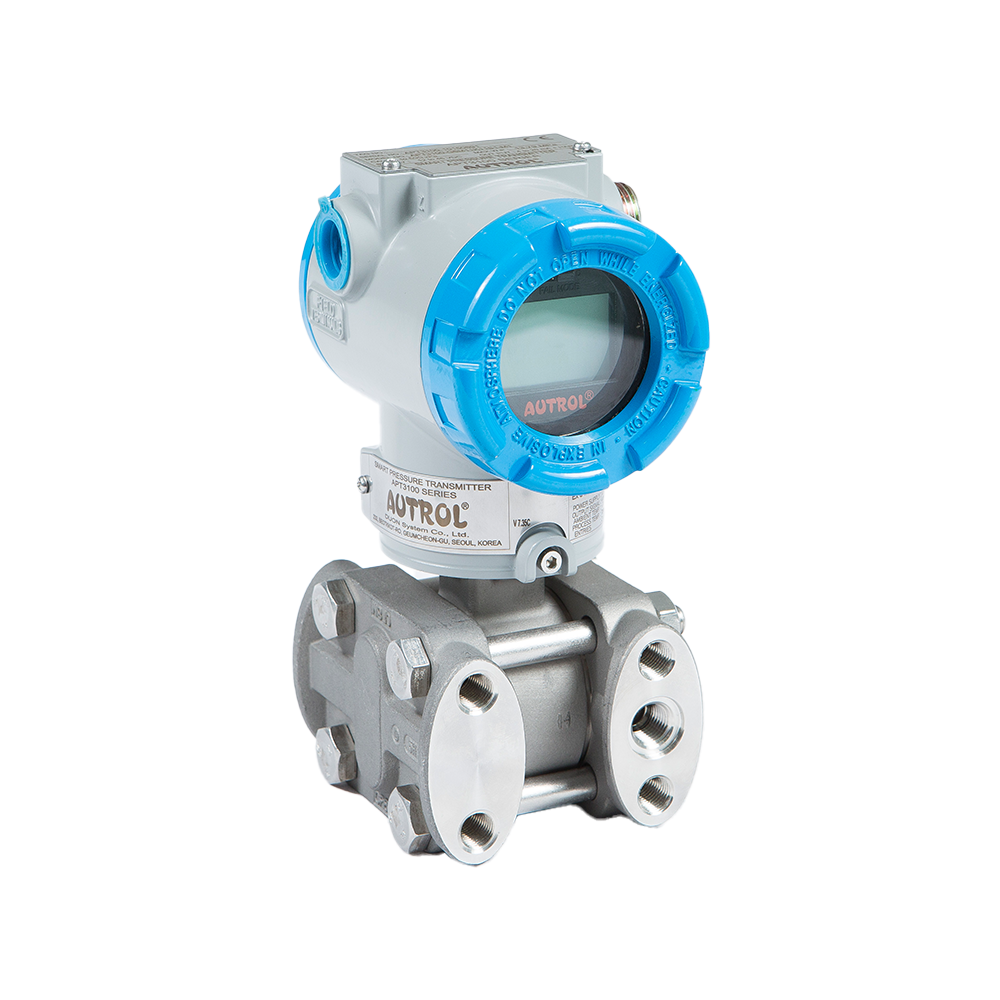

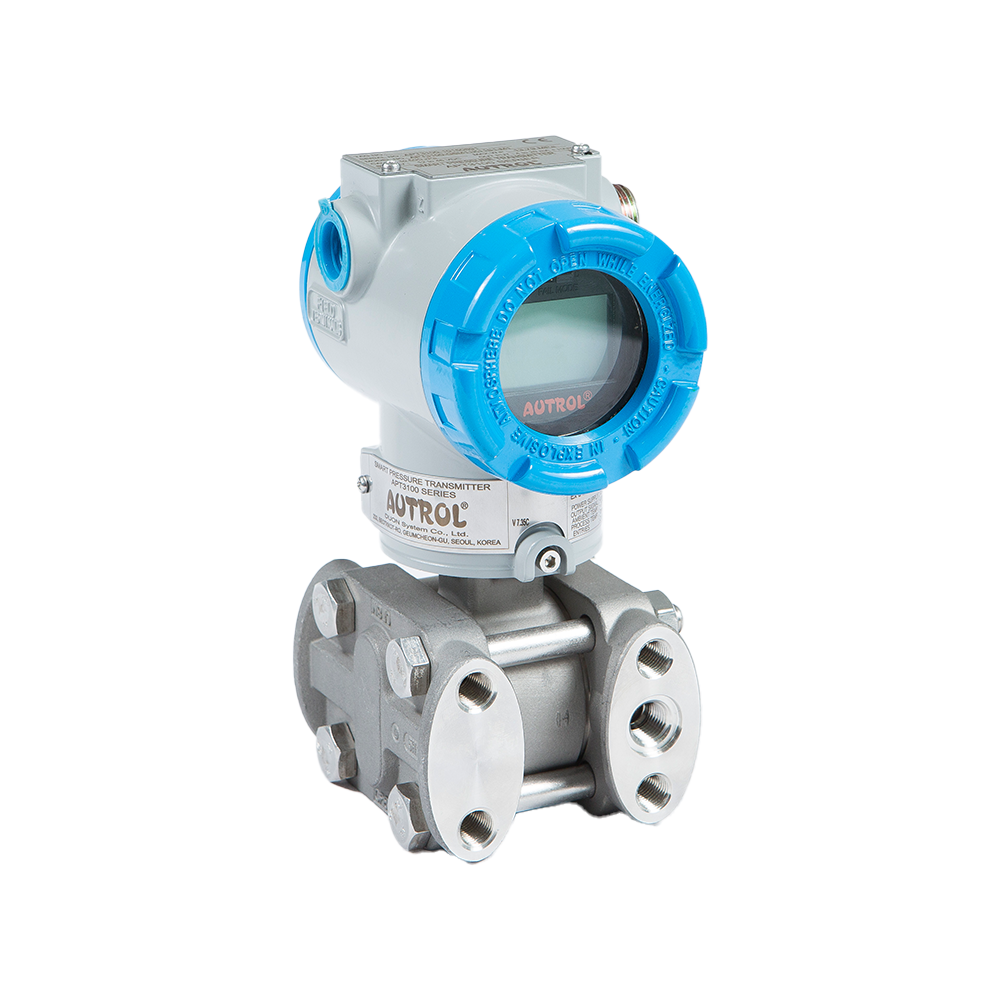

APT3700N Smart Pressure Transmitter for Nuclear Service
Description of Product
The APT3700N have the capability to measure differential pressure(DP), gauge pressure(GP), absolute pressure(AP), and high static pressure(HP) with various sesnsor ranges for various span requriement of applications.
The APT3700N Smart Pressure Transmitter is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters, communication with HART protocol. The application is very various, as measuring pressure, flow and level by application method.
Function
· Flexible Sensor Input : DP, GP, AP, HP.
· Various Output : 4 ~20mA , Digital Signals
· Explosion-proof Approval KCs
· APT3700N provides better reliable & stable performance while measuring presusre on safety requirement applications
· APT3700N designed by IEEE STD.323-2003 IEEE STD.344-2004, And its radiation resistance capability is max. 10,000rads(Gy) as Radiation Absorbed Dose testing of R.G 1.180(Rev.1). EMC test has been conducted by IEC61000series.
Company Overview
Autrol Smart Transmitter products, manufactured by Duon System, harmonize with all instruments at the field. We have been finding a way to have the best measurement solution in world instruments market.
Duon System was established on May in 1989. Since then, we had successfully performed for DSC(Distribution Control System) with more than 70 projects. However, we have focused on developing Smart type, which is core part of field instruments.: Differential, Gauge, Absolute, Temperature and GWR(Guided Wave Radar) transmitters with our own technology as named Autrol.
Autrol Smart Transmitter has performed all sorts of applications at more than 45 countries successfully with high class of international quality systems in field along with universal protocol, international certificates and regulations. The results have satisfied End-users and we are very proud of both Duon System and Korea instrument market because no one had a result like Duon System for Autrol Smart Transmitter in Korea.
Duon system now, has been supplying to BMWS, BWTS, SCR, Deisel, Boiler, BOG, LNG, Fuel Measuring and etc.
